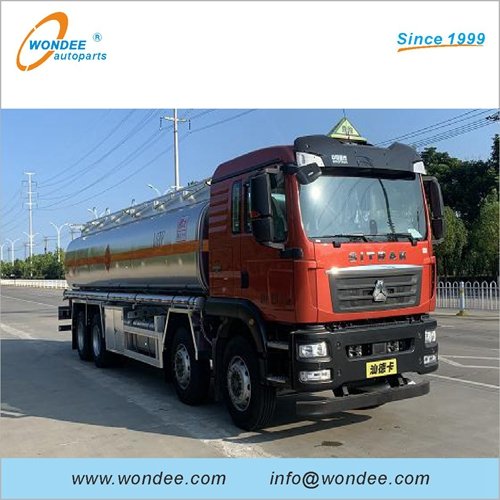

Refueling Tanker WDQ5070GJY6CA & WDQ5125GJY6C – Durable Steel Tankers

DescriptionRefueling Tankers – WDQ5070GJY6CA & WDQ5125GJY6CProduct:Refueling tankerItem number:WDQ5070GJY6CACurb weight (kg):3795Overall dimension (mm):5995×2060×2650Gross weight (kg):7360Tank size (mm):5995×2060×2650Rated load capacity (kg):3370Transport medium:Diesel, gasolineTank volume (m³):5.05Engine:WP2.3NQ130E61Cab capacity:3Carriage ConfigurationThe tank body is built with Q235 carbon steel at 4.2mm thickness for durability and safety.It has an overflow valve pump, inlet and outlet on the right, one European tank port, and a bottom valve with voice alarm.Lower loading and oil-gas recovery system installed on the right side for efficient operation.The left side reserves a fuel dispenser position for optional installation.The carriage includes a toolbox, two oil pipelines, two fire extinguishers, and optional flow meter, filling machine, and reel.Technical FeaturesFlaw DetectionAll main welds follow strict flaw detection standards for high structural reliability.Single-sided welding and double-sided forming use butt welding with copper grooves.Circumferential seam welding applies ceramic backing process for precision.X-ray testing follows GB18564.1-2019 standard and required flaw detection ratios.Sand Blasting & PaintingTanks are sandblasted to remove dust, dirt, and rust completely.This process improves paint adhesion and ensures uniform thickness on all surfaces.Painting includes pre-assembly, paint baking, and final assembly for full coverage.The entire vehicle achieves complete paint coverage with no omissions or dead corners.Chassis ConfigurationChassis model: CA1070P40K61L2BE6A84, J6F single-row cab, 3300mm wheelbase.Engine: WP2.3NQ130E61 with CA6TBX036M gearbox, 295H rear axle, speed ratio 4.875.Tires: 7.00R16LT 14PR, suspension: leaf spring 3/7 9, domestic ABS, multi-function steering wheel, 150L aluminum oil tank.Designed for safe transport of dangerous goods with high chassis stability and protection features.Note: Configurations are reference only. Final product depends on confirmed orders.Product:Refueling tankerItem number:WDQ5125GJY6CCurb weight (kg):5285Overall dimension (mm):6950×2250×2800Gross weight (kg):11950Tank size (mm):4800×1900×1320Rated load capacity (kg):6470Transport medium:GasolineTank volume (m³):9.7Engine:YCY30165-60, D30TCIF1Cab capacity:3Carriage ConfigurationTank body made of Q235 carbon steel plate with national standard thickness and single bin.Overflow valve pump, one European standard tank mouth, one submarine valve, voice prompt alarm device included.Lower oil loading system installed on the right side with reserved fuel dispenser and reel position.Optional parts include flow meter, fuel dispenser, and hose reel for flexible operation.Technical FeaturesAll main welds comply with strict flaw detection for high structural reliability.Single-sided welding and double-sided forming use butt welding with copper grooves.Circumferential seam welding uses ceramic backing for accurate joints.X-ray detection follows GB18564.1-2019 for required flaw detection ratios.Sand blasting removes dust, dirt, and rust, improving paint adhesion and thickness.Painting includes pre-assembly, baking, and final assembly for complete coverage.Chassis ConfigurationYuchai chassis EQ1125SJ8CDCWXP, single row cab, wheelbase 3800mm, engine YCY30165-60, D30TCIF1, 170hp.Transmission: Fast 8-gear, tires 255/70R22.5 16PR, front/rear axle 3.5/6.0T, double-layer straight beam frame.Features: multi-function steering wheel, lane departure warning, anti-collision alert, LCD panel, air conditioning, central control electric glass.
